TOYOTA IT3 Tool
This version do not have bluetooth.
VCX is the latest diagnostic software platform of ALLScanner, be used with hardware of VCX ,the characters be shown as below:
Diagnostic software can be operated under WinCE and Windows, available installation for Laptop or PDA.
Automotive Diagnostic language (VDL) exploitation platform based on XML by self-determination and high efficiency
database management system, these will make it easily to explore the vehicles.
Special Function for optional
1.Support diagnostic software of TOYOTA TIS Techstream to realize same function as that.
2.Support diagnostic software of VOLVO VIDA
3.Support diagnostic software of HONDA HDS,On developing.
Attention: ALLSCANNER ITS3 now have software for honda and toyota. Other software still in developing.
Mini VCI - FOR TOYOTA TIS Techstream
1)Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles protocols.
2)Use standard 802.11b/g WIFI wireless,connect easy to network, or connect to Laptop to realize wireless diagnosis.
3)Diagnostic software accord with international standard, collocate communication port flexibly, less connectors
4)Self-determination design for connectors and cables.
5)Hardware accord with CE and FCC standard.
6)support almost all vehicles socket.
CPU 16 digit Dual Cell specialize CPU
RAM 64KB RAM
FLASH 256KB FALSH
Diagnostic Port 24PIN, self-determination design
Wireless Port 802.11b/g WIFI wireless
LED 4 LED indicator light,indicate power and status.
Power DC 9V-28V
Working Temperature -20°C~70 °C
Storage Temperature -40°C~85 °C

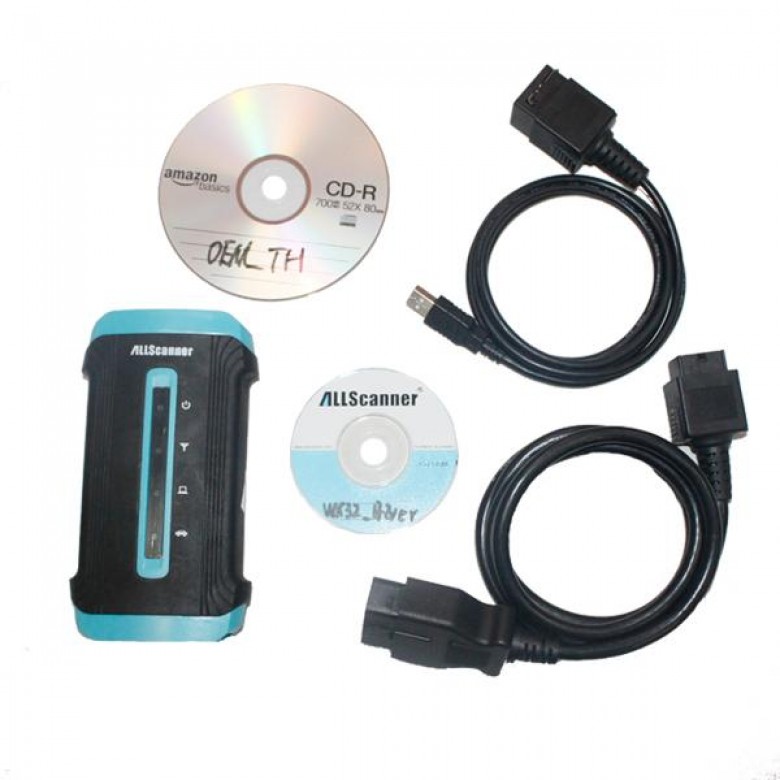

VCX Diagnostic box, the communicate bridge between mainunit and vehicles.
Connector Connect to vehicle diagnostic socket.
Wire connect RS232 serial port,115200bps
