Bosch KTS 540

The KTS 540 ECU scanner has the added advantage of a Bluetooth Interface, that allows the convenience and mobility of a wireless connection between your PC and KTS module.

The KTS 540 also includes the integrated IBOX module which can be removed and is electronically upgradeable to allow future interface expansion as new diagnostic protocols are released.

Revision History
Bosch KTS 570 - Bluetooth
Bosch KTS 540 - Bluetooth
Bosch KTS 530
Bosch KTS 520

The most important Diagnostic tool in the workshop is information.
Only Bosch provides a Total Support Package consisting of:
• A comprehensive Diagnostic Training program and professional Technical Support Hotline
• ESI[tronic], an integrated software program, featuring a complete guided repair analysis from fault code to replacement part application.
• Updated quarterly, ESI[tronic] is supported by local software development program providing ever expanding vehicle coverage.

Bosch KTS 540 Diagnostic Specifications

Scanner
Supports the following diagnosis protocols:
-Flash Code
-ISO 9141-2 K/L-Lines
-SAE-J1850 VPW (GM,...)
-SAE-J1850 PWM (Ford)
-CAN ISO 11898
-CAN ISO 15765-4 (OBD)
-CAN Single Wire
-CAN Low speed
-CAN Mid speed
-CAN High speed

Multimeter
Resistance measurement: Measured value accuracy 1% of mean. Option to zero in the measurement range 100 Ω to 1 MΩ
Voltage measurement: Measurement range AC & DC +/-200 mV to +/-200 V (resolution 0.1 mV to 100 mV)
Current measurement: Currents are picked up by optional current clamps, an FSA current clamp can also be used

KTS 540 Hardware & Software Specifications

Software
Supported Operating System: Windows XP
Diagnostic Software: ESI[tronic] with KTS Diagnostics

Hardware
KTS Unit:
Housing: Durable Plastic
Dimensions: 220 x 140 x 40 mm
Weight: 600 grams
Operating temperature: 5° - 40°C
External power supply: 100 – 240 V AC
Connectors: Diagnostic/Power Supply/USB/USB-Bluetooth/Multi Meter/I-Box

PC Hardware Requirements:
CPU: Min 400MHz
Hard Drive: Min 10Gb
Memory: Min 256Mb RAM
Communication Port: USB
Bluetooth Port: USB
Optical Drive: DVD

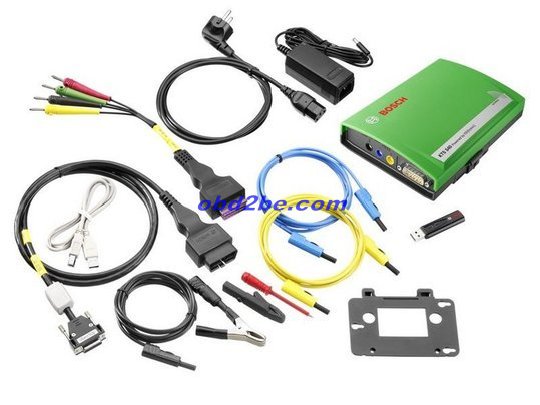

KTS 540 Scope of Delivery

KTS 540 Base Scope of Delivery
KTS 540: 1 687 022 436
Power transformer 100-240 V: 1 687 022 889
Power cable: 1 684 461 106
Bluetooth Adaptor: 1 687 023 382
USB cable 3 m: 1 684 465 562
OBD Adapter cable 1.5 m: 1 684 465 555
Uni-4 adapter lead: 1 684 463 539
Multimeter cable blue: 1 684 430 066
Multimeter cable yellow: 1 684 430 067
Test probe red: 1 684 485 035
Ground cable black: 1 684 430 068
Ground clamp, black: 1 684 480 022
Mounting bracket with 5 screws: 1 681 398 030
Carrying case: 1 685 438 145

All KTS 540 testers are shipped with the base items as above, you can then choose from one of the connector packages (AUS, EUR & DSL) that most suits your workshop requirements as below.

Australian Package - KTS540AUS
Ford EB-EL: KTSFRD20PN
Mitsubishi/Hyundai 12 Pin: KTSMITS12P
Toyota Square 17 Pin: KTSTOY17PT
Toyota Round 17 Pin: KTSTOY17PN
Mazda 17 Pin: KTS17MAZ17PN
Kia 20 Pin: KTSKIA20PN
Holden VN-VP 6 Pin: KTSVPVN6PN
GM/Daewoo 12 Pin: KTSGMDW12P
Holden/Opel 10 Pin: 1 684 463 410
Nissan OBD: 1 684 463 490
Nissan 14 Pin: 1 684 463 651
12v Battery Clamp Cable: CIGBATLEAD
12v Cigarette Lighter Cable: 12VCIGLEAD
Aluminium Carry Case: KTSCONCASE

European Package - KTS540EUR
Audi/VW 2 Pin: 1 684 463 467
BMW 20 Pin: 1 684 463 465
Mercedes Benz 38 Pin: 1 684 485 382

Diesel Package - KTS540DSL
Nissan OBD: 1 684 463 490
Nissan 14 Pin: 1 684 463 651
VP29/30/44 Breakout Box: 0 986 612 447
Ford PSG5 Adaptor: 1 684 463 652

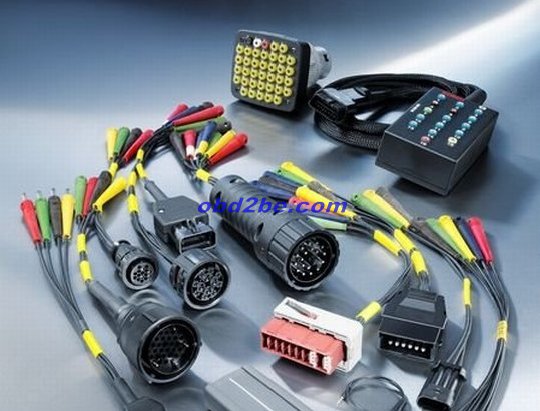

KTS 540 Accessories
The following adaptors & accessories can be ordered individually in addition to the KTS 540 AUS, EUR & DSL connector packages outlined in the Scope of Delivery section.

Diagnostic Connectors
OBD Lead 3m: 1 684 465 557
OBD Lead 5m: 1 684 465 567
OBD Breakout Box: 1 684 462 514
BMW 20 Pin: 1 684 463 465
Fiat/Alfa/Lancia: 1 684 463 613
UK Ford: 1 684 463 440
UK Ford EEC4: 1 684 463 496
Ford PSG5 Adaptor: 1 684 463 652
Hyundai/Mitsubishi: 1 684 461 144
MAN 12-pin: 1 684 463 499
MAN 37-pin: 1 684 463 498
Mercedes Benz 14 Pin: 1 684 463 494
Mercedes Benz 38 Pin: 1 684 485 382
Nissan OBD: 1 684 463 490
Nissan 14 Pin: 1 684 463 651
Holden/Opel 10 Pin: 1 684 463 410
Opel Vauxhall: 1 684 463 464
Citroen/Peugeot 10 Pin: 1 684 463 399
Citroen/Peugeot 3-pin: 1 684 463 400
Citroen/Peugeot 2 Pin: 1 684 463 612
Renault: 1 684 463 468
Rover: 1 684 463 439
VW/Audi/Seat 2 Pin: 1 684 463 611
VP29/30/44 Breakout Box: 0 986 612 447
Ford EB-EL 20 Pin: KTSFRD20PN
Mitsubishi/Hyundai 12 Pin: KTSMITS12P
Mistubishi OBD: KTSMITSOBD
Toyota Square 17 Pin: KTSTOY17PT
Toyota Round 17 Pin: KTSTOY17PN
Mazda 17 Pin: KTS17MAZ17PN
Kia 20 Pin: KTSKIA20PN
Holden VN-VP 6 Pin: KTSVPVN6PN
GM/Daewoo 12 Pin: KTSGMDW12P

Multimeter Leads
600A Current Clamp: 1 687 224 864
600mA Measuring Shunt: 1 684 503 103
FSA current clamp, 30A: 1 687 224 969
Adaptor for FSA 450 current clamp: 1 684 463 522
Connector for 1 687 463 522: 1 687 480 125

Miscellaneous
Tire valve activator: 1 687 200 663
Test cable set: 1 687 011 208
12v Battery Clamp Cable: CIGBATLEAD
12v Cigarette Lighter Cable: 12VCIGLEAD
Aluminium Carry Case: KTSCONCASE
