1.Software Version: ODIS V3.02
ODIS System Core Advantage --- Realizing higher quality and lower cost on repair through high-efficiency diagnosis process!
English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Chin
3.Supported most Volkswagen Group Car Models: VW, AUDI, SKODA, SEAT (1996y-2013y), Lamborghini, Bentley
4.This VAS5054A is Bluetooth Version,Bluetooth Connection Password: 082145725
5.This VAS 5054A hardware support Online Coding with VW dealer's software,our software do not support online coding.
6.Support PC OS: Windows XP(xp2/xp3)
7.Vas 5054A User manual download: VAS5054a Setup instrcution PDF; How to setup VAS 5054A
8.the better quality With OKI Chip
VAS 5054A Description:

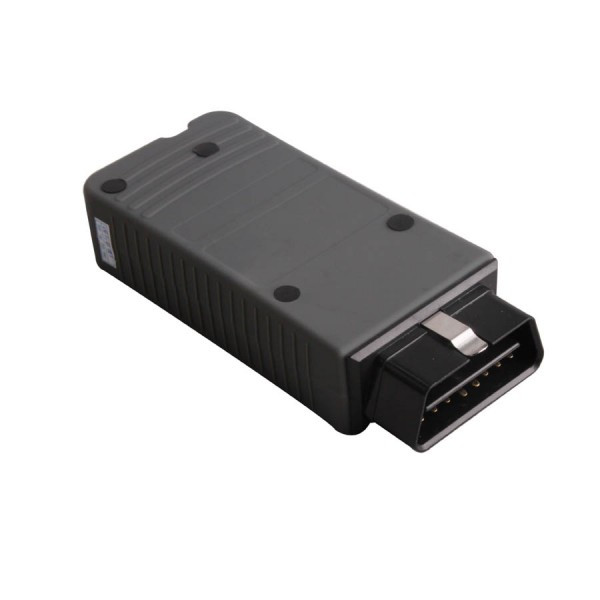

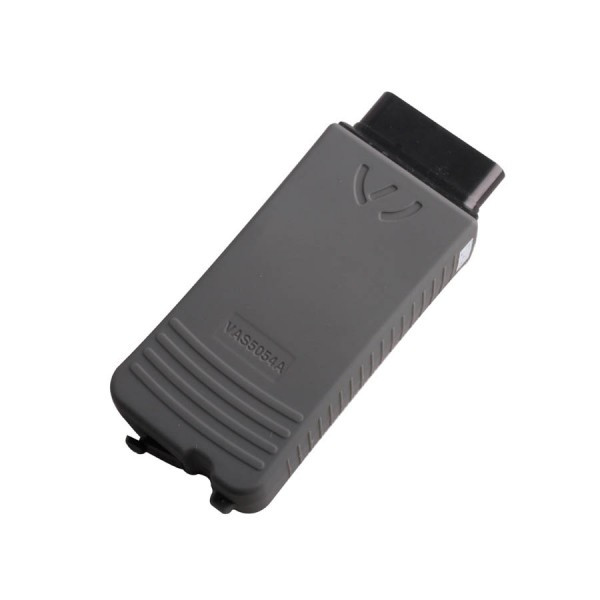

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
No cables are needed for vehicle diagnostics using the VAS 5054A.
VAS 5054A Bluetooth Version Feature:
The VAS5054A integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
VAS 5054A ODIS System Core Feature:
The GFF database guided by centralized management posts fault information and solution directly.
A full range of integration from developing to after sale service makes procedure basis reliable.
The integration of diagnostic system (eg : Elsa pro) further enhances the core processes of service.
Systematically optimizes technician’s diagnostic procedure and saves their time cost.
The optimization of diagnostic procedure makes the distributor’s cost reasonable.
VAS 5054A ODIS V2.0 Computer Windows System Requirements:
Windows System Language: American English
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing VAS5054A
VAS 5054A Specification:
The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access Via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.
The Following Vehicle Bus Systems are Supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

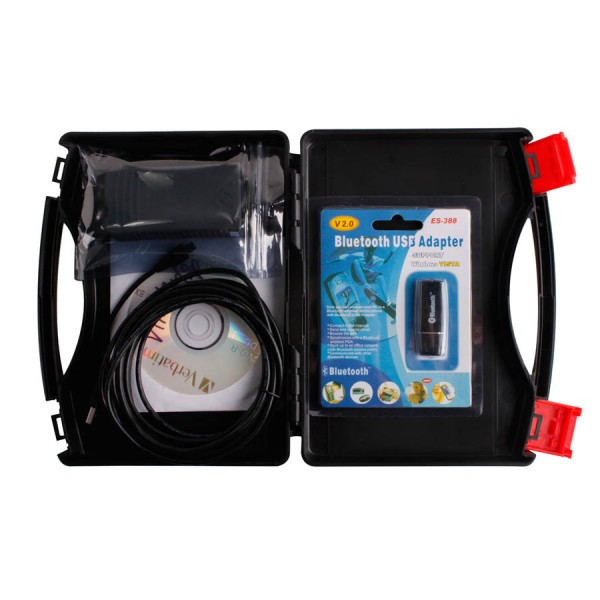

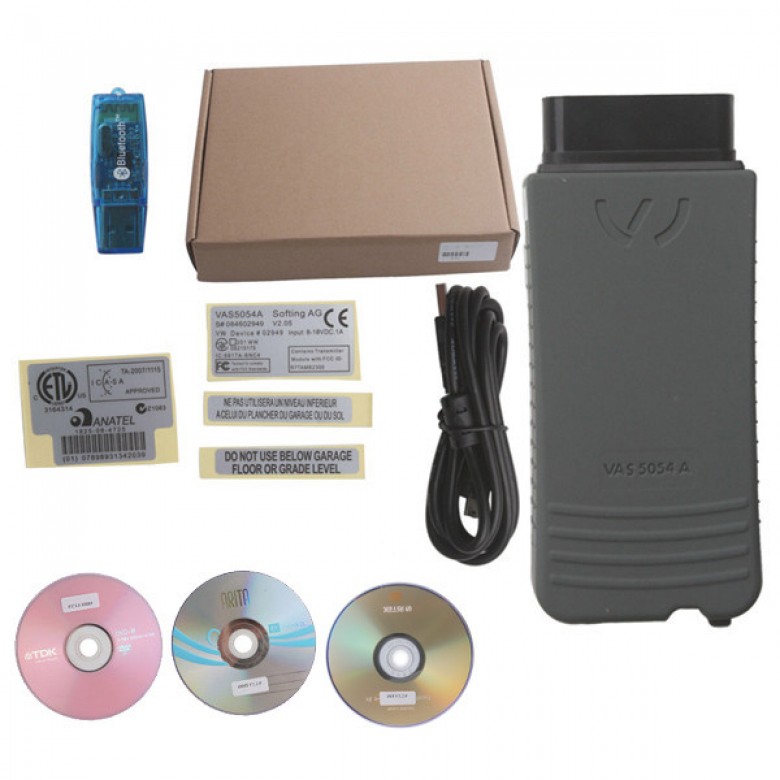

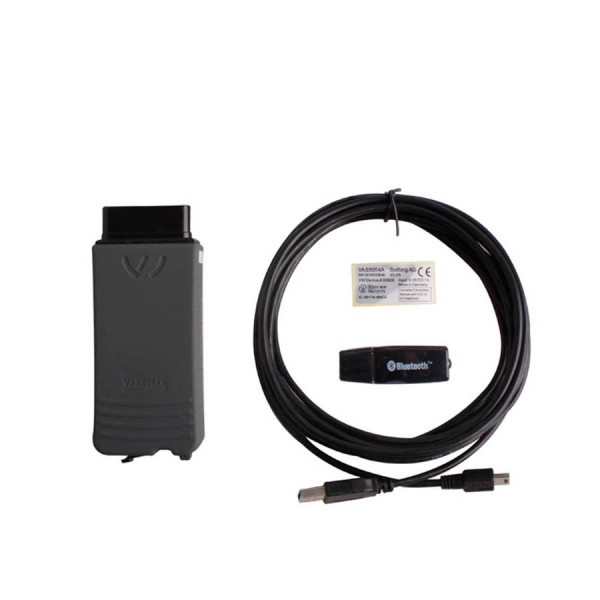

1pc x VAS 5054A Main unit
1pc x USB Cable

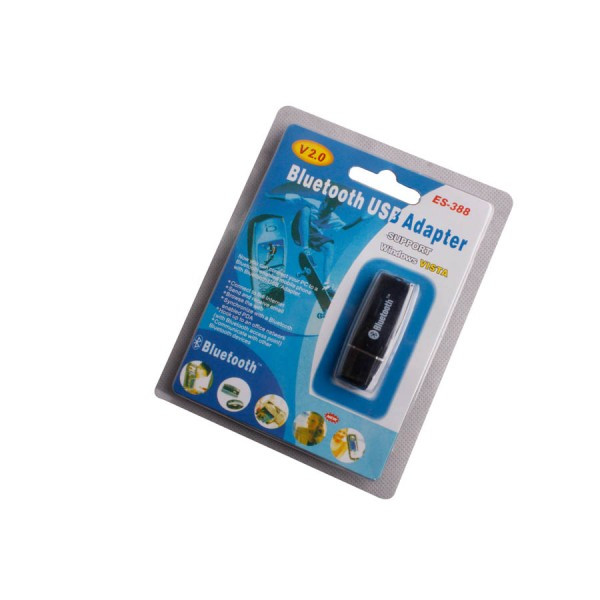

1pc x USB Bluetooth Adapter
2pcs x CD Software

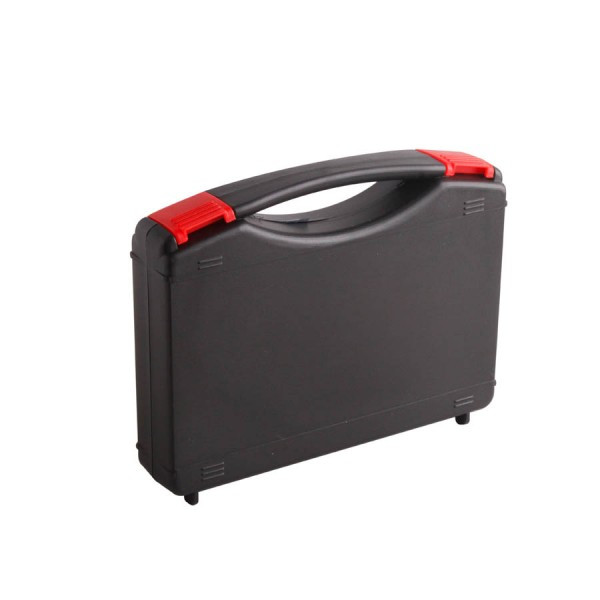

1pc x Carry Case
Q: VAS5054a doesn’t support diagnosing the cars after 2007, right?
A: No, that’s not true. VAS5054a support diagnosing the cars up to 2013, we used to test successfully some models of 2011 and 2012 year. As for your car model after 2007
is not supported, you can try to diagnose some more models after 2007 to ensure whether 5054A supports your car or not.
Q: Which tool is best to reset the airbag for VW Golf Plus 1.6 FSI 85 KW 2005?
A: 5054A is the best and reliable.
Q: Does 5054A reset the ABS light and SRS (Airbag) light for VW AUDI Skoda SEAT?
A: Yes, It does.
Q: VAS 5054A Bluetooth (item No: SP33) can be used to reset service light, VAG K Can V4.6 can’t support service reset for Audi car?
In what functions and features 5054A is better than VAG K+CAN 4.6?
A: VAS5054A (item No: SP33) has stable function and good performance in diagnosing. VAG K Can V4.6 can work without connecting with
computer, it is convenient and simple to use. Super VAG K+CAN V4.6 can be used to reset airbag light and active TV for a part of car models.
Q: Can VAS 5054A disable immobilizer like EC tools?
A: No, it can’t disable immobilizer; our 5054A only support reset every electronic control system in the car.
