Designed for bikes motor tuning - can eliminate all 2006-2009 years Yamaha bikes and scooters motor ECU immobilizer function. Works with YFZ R1, R6, X-MAX, T-MAX, V-MAX and others

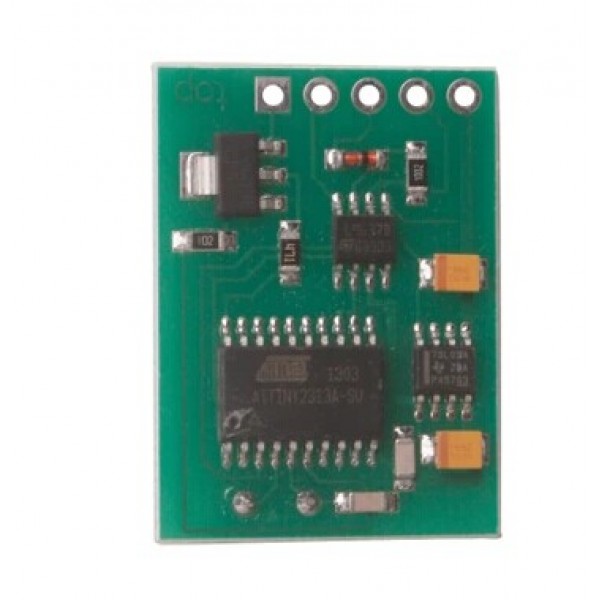

The emulator of an immobilizer for motorcycles and scooters Yamaha.
Works with all motorcycles and scooters Yamaha from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.
For emulator installation in the case of a regular immobilizer :
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.
Black (2 pcs.) GND
Red with a green strip BATT (+12v)
Red with a white strip IGN (+12v)
Blue LED (+5v)
Yellow with a blue strip K-line Immo-ECU
1* maitain item
