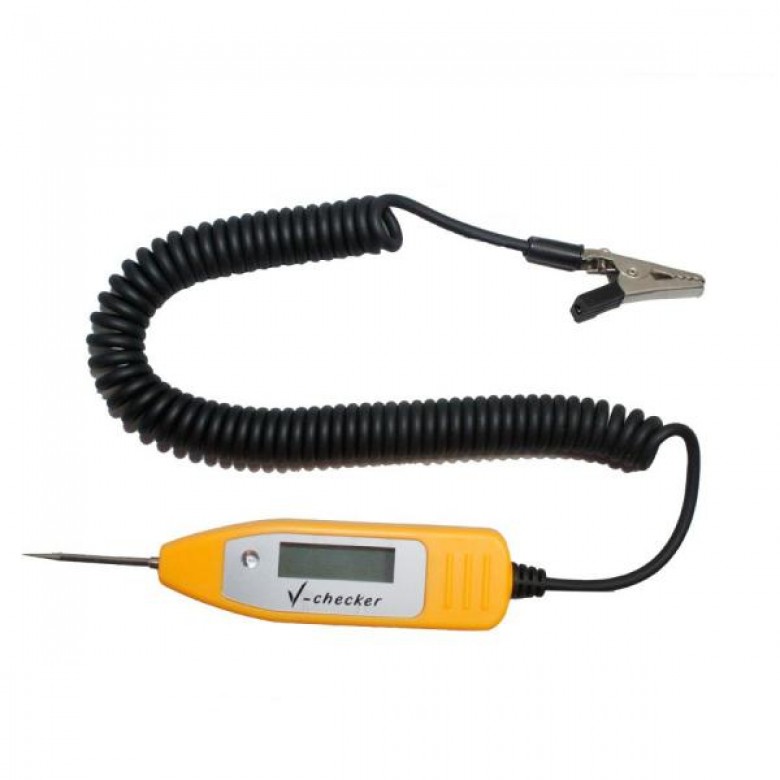

V-Checker T701 Circuit Tester Pencil

V-checker T701

V-checker T701 circuit tester integrates functions of electricity test pencil, automotive multimeter and oscilloscope. The pencil structure, LCD screen and especially the high accuracy greatly help the garage technicians to diagnose vehicle’s problem quickly and highly increase their work efficiency.

Related Products
V-Checker - V-Checker Full version

Feature

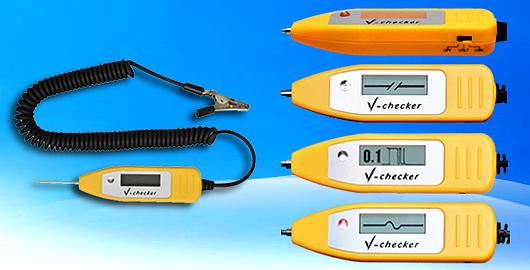

V-checker T701 circuit tester can check the cable assembly signal from 0~36V with accuracy 0.1V. When the signal voltage is over 36V, the LCD screen will show icon ">>”. The tester’s waveform range is from 0-12V. When the tester leaves the cable, the waveform will be enlarged and the LCD displays 0.4s actual waveform. Meanwhile, the voltage range is marked and user can define waveform of 10-50Hz. When the cable assembly voltage is over 0.1V, the LCD indicates voltage value and waveform. The blue LED would be shining When voltage is over 0.5V.
T700 also can be used to check continuity of cable assembly. It shows test results and graphs through red LED light and LCD screen. When the cable assembly is continuous, the red LED light is On. Verse vase, the red LED light is off.

Specification
Working voltage：3.0-3.3V
Working current：5mA /Standby current：5μA
Working power：0.9W / Standby power：0.1mW

Package List
1pc x V-CHECKER T701 Circuit Test Pencil
