Bus Protocols supported by the Mangoose MFC for Honda
CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)
KWP2000 (ISO9141 / ISO14230)
Short to Ground pins 1, 9 and 15
VPP +5 Pin 12
The DrewTech Mongoose is a USB pass-thru device that utilizes the SAE J2534-1 API. What this means is that the Mongoose uses a standard communications interface to the vehicle, allowing it to work with 3rd party diagnostic applications. Different diagnostics and data logging applications supported are currently supported by the Mangoose, with more being added all of the time.
PCMScan Diagnostics and Data Logging Software
This full version of PCMScan allows viewing, charting, data logging, and playback of diagnostic data in real time. Realistic looking gauges can be moved, resized, and laid out to resemble your own dashboard. Display English or Metric units. Read stored Diagnostic Trouble Codes (DTCs), clear the check engine light, and test emissions related systems.
PCMScan running on Mongoose ISO and Mongoose VPW
PCMScan running on Mongoose ISO(M-ISOCAN) or Mongoose VPW(M-VPWCAN) supports all ISO141 import vehicles and all CAN vehicles including all GM vehicles and many Ford, , Honda, Toyota, Chrysler, Mitsubishi, Nissan, Volvo, Volkswagen, and many other automaker brands. By 2008 all vehicles on the road will be CAN based and supported by the Mongoose ISO/CAN adapter.
Drew Technologies also provides an application programmer interface (DLL) for OEMs, integrators, or end-users to develop their own PassThru (SAE J2534) applications. Create your own applications in LabVIEW tm, C or Visual Basic.

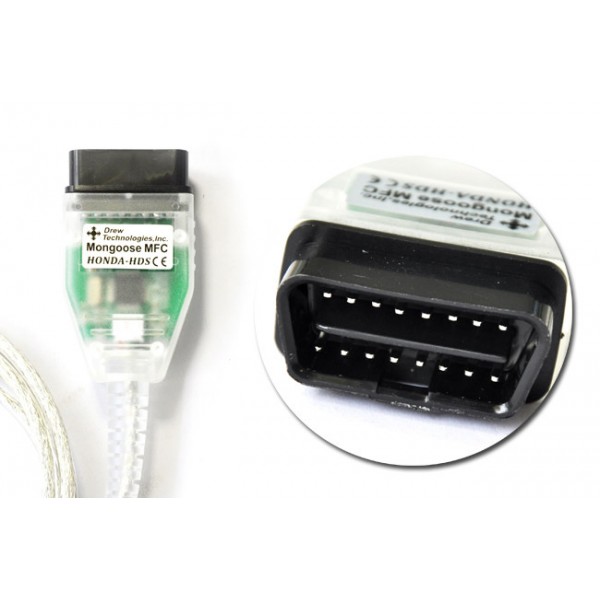

1) Mongoose vehicle interface
2) Installation CD with device driver (J2534 compatible)
